Application of Tsingcarbo Light-Absorbing Coatings on Blackbody Targets

Blackbody targets are critical calibration and reference components in optical metrology, radiometry, and thermal imaging systems, requiring ultra-low reflectivity, high thermal stability, and uniform light absorption across a broad spectral range. Traditional black anodizing, paint-based coatings, and even some commercial “ultra-black” materials often fail to meet the stringent performance demands of modern precision instruments, suffering from issues like poor adhesion, limited spectral range, and inconsistent absorption over complex geometries. Tsingcarbo’s light-absorbing coatings, applied via a specialized spraying process, address these challenges by delivering exceptional stray light suppression and durable, uniform absorption tailored for blackbody applications.

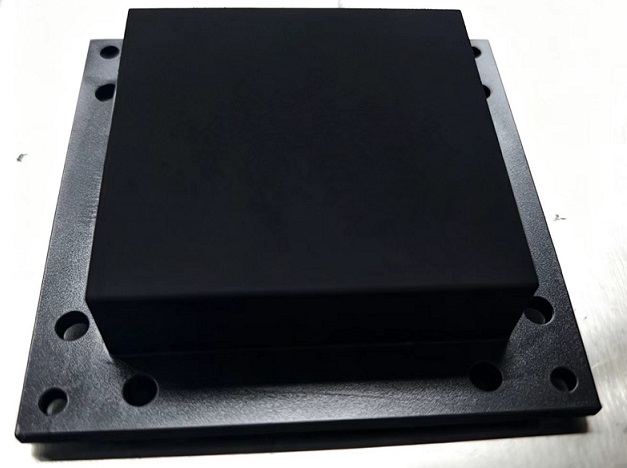

Tsingcarbo’s sprayed light-absorbing coatings leverage a proprietary micro-nano porous carbon structure to create a “light maze” effect. When light interacts with the coating’s surface, it enters the interconnected pores, undergoing multiple internal reflections that dissipate nearly all incident radiation through absorption rather than reflection. Unlike conventional coatings that rely solely on surface roughness or pigment absorption, this carbon-based porous structure achieves ultra-high absorption rates (typically >98.5% across visible and near-infrared spectra) while maintaining excellent mechanical and chemical stability. The spraying application method is particularly well-suited for blackbody components, enabling uniform coating coverage on complex geometries, recessed surfaces, and three-dimensional structures like the precision-machined blackbody base shown in the image.

For blackbody calibration targets, the key performance advantages of Tsingcarbo’s sprayed light-absorbing coatings include:

1. Ultra-Low Reflectivity & High Absorption Consistency: The coatings deliver stable, repeatable absorption performance across visible, near-infrared, and mid-infrared wavelengths, eliminating stray light and flare that would otherwise introduce errors in radiometric and photometric measurements.

2. Excellent Adhesion & Durability: The sprayed coating forms a strong, bonded layer with the blackbody substrate, resisting chipping, peeling, and wear during handling, assembly, and long-term operation in laboratory or industrial environments.

3. Thermal Compatibility: The carbon-based coating exhibits low thermal emissivity drift and high temperature resistance, making it suitable for both ambient and moderately elevated-temperature blackbody applications, where stable thermal-optical performance is critical.

4. Uniform Coverage on Complex Geometries: Unlike vacuum-deposited coatings that can struggle with shadowed or recessed areas, the spraying process ensures full, even coverage on the multi-hole flanges and three-dimensional surfaces of blackbody assemblies, eliminating performance inconsistencies caused by uneven coating thickness.

In practical applications, these coated blackbody targets serve as reliable reference standards for spectrometer calibration, thermal imaging camera testing, and optical system stray light characterization. Whether used in laboratory research instruments, aerospace radiometry systems, or industrial quality control setups, Tsingcarbo’s sprayed light-absorbing coatings enhance the accuracy and repeatability of measurements by minimizing optical interference and ensuring consistent blackbody performance over the component’s entire service life.

By combining advanced micro-nano carbon material technology with a scalable spraying application process, Tsingcarbo provides a high-performance, cost-effective solution for blackbody optical coatings, addressing the limitations of traditional materials and supporting the growing demand for precision in optical and radiometric calibration.
