Tsingcarbo® Black Light-Absorbing Film | Lens Shading Gasket & Spacer

Application Case: Tsingcarbo® Black Light-Absorbing Film for Lens Shading Gaskets & Spacers

Lens shading gasket is one of the typical applications for Tsingcarbo® Black film. It can be die-cut to replace imported materials such as SuperBlack IR and FINESHUT, widely used inside industrial vision lenses, security surveillance lenses, automotive imaging optical modules.

Working as shading, thickness-setting spacer with slight elastic cushioning, it solves the common failure of traditional flocked gaskets: fiber shedding and particle contamination inside lens barrel, improving assembly yield and realizing domestic substitution of imported optical materials.

Key Benefits

✅ Broad-band light absorption 200-2500 nm UV-Vis-NIR low hemispherical reflectance. Effectively suppress ghost image, glare and haze caused by stray-light inside lens assembly.

✅ Low-particle & high cleanliness Homogeneous polymer porous structure. No loose fiber after die-cutting, avoids black-spot defects on sensor and lens surface. Meets clean-room assembly requirements.

✅ Controlled thickness & micro-elasticity Provides precise air-gap spacing between lenses. Minor compression compensates machining tolerance and relieves assembly stress, no modification needed for existing lens barrel design.

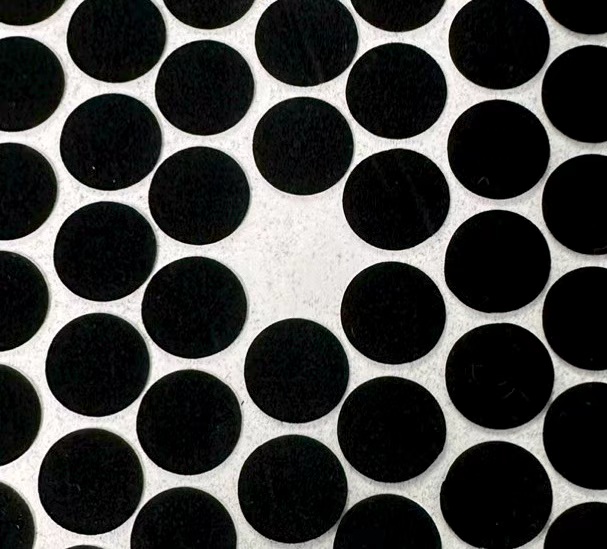

✅ Excellent die-cutting performance Supports high-speed die-cutting for circular, annular and custom-shape gaskets. Adhesive-backed option available for easy assembly.

✅ Wide temperature stability Stable performance from -40℃ to 120℃, anti-creep, prevents focal-shift under harsh automotive & outdoor surveillance conditions.

✅ Localized supply advantage Shorter lead time, flexible custom thickness and adhesive options, reduces procurement cost compared with imported counterparts.

Typical Lens Applications

- Industrial machine-vision inspection lenses - 4K/8K star-light security surveillance lenses - ADAS automotive forward-view & surround-view camera lenses - Precision instrument optical assemblies

Note: Supplied in roll form, adhesive / non-adhesive optional, for downstream die-cut processors to fabricate custom shading gaskets.
